10 VGA Termahal Di Indonesia ( Mungkin juga Di Dunia ) 2015

VGA atau kepanjangannya Video Graphic Adapter (Video Graphic Array, Wikipedia) merupakan salah satu komponen hardware yang penting pada komputer guna memproses tampilan atau gambar (Graphic). Tanpa VGA Komputer tidak bisa menampilkan apapun pada layar monitor.

Perkembangan VGA cukup pesat hingga kini tak terhitung jumlah seri VGA yang sudah di buat. Perkembangan jaman juga telah membuat VGA menjadi komponen yang sangat dicari terutama bagi gamers dan digital artist.

Berikut saya ulas 10 VGA Termahal Di Indonesia :

1. Leadtek Quadro Quadro Plex 7000 Turnkey System NVidia PCI Exp.

GPU Memory Specs:

Total Frame Buffer	12 GB GDDR5 (6 GB/GPU)
Memory Bandwidth (GB/sec)	177.6

Display Support:

Dual Link DVI-I	4 (2 per GPU)
# of Digital Outputs	4
# of Analog Outputs	4
Stereo (3-pin Mini-DIN)	Yes
Maximum Display Resolution Digital @ 60Hz	2560x1600
Active Display Channels	4
3D Vision

Feature Support:

Shader Model	5.0
OpenGL	4.3
Microsoft DirectX	11
SLI Mosaic Technology
NVIDIA CUDA Architecture
G-Sync Option
SLI Frame Rendering Support
NVIEW Display Management Software
FSAA (maximum)	64x (128x with SLI)

Thermal and Power Specs:

EnergyStar Enabling	Yes (with 2:1 or better max/idle power ratio)
Maximum Power Consumption	600 W
Acoustics	< 32dB

Harga : Rp 168.482.000

2. Leadtek Quadro 6000 - 6GB 384 Bit DDR5 NVidia PCI Exp.

GPU Specs:

NVIDIA Quadro GPU	Quadro 6000
CUDA Cores	448
Form Factor	4.376” H x 9.75” L / Dual Slot
Gigaflops (Single Precision)	1030.4
Gigaflops (Double Precision)	515.2

GPU Memory Specs:

Total Frame Buffer	6 GB GDDR5
Memory Interface	384-bit
Memory Bandwidth (GB/sec)	144 GB/s

Display Support:

Dual Link DVI-I	1
DisplayPort	2
# of Digital Outputs	2
# of Analog Outputs	1
Stereo (3-pin Mini-DIN)	Yes
Maximum Display Resolution Digital @ 60Hz	2560x1600
Active Display Channels	2
3D Vision/3D Vision Pro

Feature Support:

Shader Model	5.0
OpenGL	4.4
Microsoft DirectX	11
NVIDIA Multi-OS Technology
SLI Mosaic Technology*
NVIDIA CUDA Architecture
SDI Option
G-Sync Option
SLI Frame Rendering Support*
NVIEW Display Management Software
FSAA (maximum)*	64x (128x with SLI)
Number of Slots	2
Audio Support (via DisplayPort)

Thermal and Power Specs:

EnergyStar Enabling	Yes
Maximum Power Consumption	204 W
Auxiliary Power Cable(s) Required	Single 8-pin OR dual 6-pin

Harga : Rp 47.851.000

3. Leadtek Quadro Quadro Tesla K20 - GK110 5GB 320 Bit NVidia PCI Exp.

Specifications
Brand	NVIDIA
Model	900-22081-2220-000
Type	Workstation
Chipset Manufacturer	NVIDIA
GPU Series	Tesla
GPU	Tesla K20
Memory Size	5GB
Memory Type	GDDR5
Memory Bandwidth	208GB/s
Peak Double Precision	1.17TF
Peak Single Precision	3.52TF
Cores/Stream Processors	2496
Interface	PCI-E 2.0 x16
Overclocked	No
APIs Supported	Shader Model 5, OpenGL 4.3, DirectX 11, NVIDIA Maximus, NVIDIA SLI, Quadro Sync, Quadro Mosaic, NVIDIA CUDA
Cooling Type	Active/Fan
Number of GPUs	1xGK110
GPU Computing Applications	CFD, CAE, Financial computing, Computational chemistry and Physics, Data analytics, Satellite imaging, Weather modeling
Architecture Features	SMX, Dynamic Parallelism, Hyper-Q
Power Consumption	225W

4. Leadtek Quadro Leadtek Quadro Kepler K5000 For Mac 4Gb 256Bit DDR5 NVidia PCI Exp.

GPU Specs
CUDA Cores¹	1536
Single Precision Compute Performance	2.1 Teraflops

GPU Memory Specs
Memory Size Total	4GB GDDR5
Memory Interface	256-bit
Memory Bandwidth (GB/sec)	173 GB/s

Display Support
Dual Link DVI-I	1
Dual Link DVI-D	1
DisplayPort 1.2	2
# of Digital Outputs	4
Stereo (3-pin Mini-DIN)	Optional
Maximum Display Resolution (Digital)	DVI-DL: Up to 330M Pixels/sec: (ex 1920x1200@120Hz, 2560x1600@60Hz) DisplayPort 1.2: Up to 540M Pixels/sec & 17.3 Gbps data rate (ex 3840x2160@60Hz 30bpp, 2560x1440@120Hz 30bpp, 4096x2160@24Hz 36bpp, 4096x2160@50Hz 30bpp )

Technologies Supported
Shader Model	5
OpenGL	4.3
OpenCL	1.1
Microsoft DirectX	11
NVIDIA Maximus
NVIDIA SLI
Quadro Sync
Quadro Mosaic
Quadro Digital Video Pipeline
NVIDIA GPUDirect
NVIDIA GPUDirect for Video
NVIDIA 3D Vision and 3D Vision Pro
NVIDIA CUDA Architecture
NVIEW Display Management Software

Energy Specs
EnergyStar Enabling	Yes
Total Board Power	122 W
Idle Power	18 W
Acoustics	Active Fansink

Harga : Rp 27.128.000

5. Leadtek Quadro Leadtek Quadro Kepler K5000 4Gb 256Bit DDR5 NVidia PCI Exp.

GPU Specs
CUDA Cores¹	1536
Single Precision Compute Performance	2.1 Teraflops

GPU Memory Specs
Memory Size Total	4GB GDDR5
Memory Interface	256-bit
Memory Bandwidth (GB/sec)	173 GB/s

Display Support
Dual Link DVI-I	1
Dual Link DVI-D	1
DisplayPort 1.2	2
# of Digital Outputs	4
Stereo (3-pin Mini-DIN)	Optional
Maximum Display Resolution (Digital)	DVI-DL: Up to 330M Pixels/sec: (ex 1920x1200@120Hz, 2560x1600@60Hz) DisplayPort 1.2: Up to 540M Pixels/sec & 17.3 Gbps data rate (ex 3840x2160@60Hz 30bpp, 2560x1440@120Hz 30bpp, 4096x2160@24Hz 36bpp, 4096x2160@50Hz 30bpp )

Technologies Supported
Shader Model	5
OpenGL	4.3
OpenCL	1.1
Microsoft DirectX	11
NVIDIA Maximus
NVIDIA SLI
Quadro Sync
Quadro Mosaic
Quadro Digital Video Pipeline
NVIDIA GPUDirect
NVIDIA GPUDirect for Video
NVIDIA 3D Vision and 3D Vision Pro
NVIDIA CUDA Architecture
NVIEW Display Management Software

Energy Specs
EnergyStar Enabling	Yes
Total Board Power	122 W
Idle Power	18 W
Acoustics	Active Fansink

Harga : Rp 26.548.000

6. Asus Ares II 6Gb 768Bit DDR5 ARES2-6GD5 Ati Radeon PCI Exp.

Graphics Engine

AMD Radeon HD 7970x2

Bus Standard

PCI Express 3.0

Video Memory

GDDR5 6GB

Engine Clock

GPU Boost Clock : 1100 MHz

GPU Base Clock : 1050 MHz

Memory Clock

6600 MHz ( 1650 MHz GDDR5 )

Memory Interface

768-bit

Resolution

D-Sub Max Resolution : 2048x1536

DVI Max Resolution : 2560x1600

Interface

DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)

HDMI Output : Yes x 1 (via DVI to HDMI adaptor x 1 )

Display Port : Yes x 4 (Regular DP)

Accessories

1 x CrossFire cable

3 x Power cable

1 x DVI to HDMI adaptor

Power Consumption

up to 500W3 additional 8 pin PCIe power required

Software

ASUS Utilities & Driver

ROG GPU Tweak

ASUS Features

Fan Sink

Super Alloy Power

Note

Card: 11.8" x 5.5" x 1.8"

Radiator: 4.6" x 5.8" x 1.9"

Radiator Fan: 4.7" x 4.7" x 1"

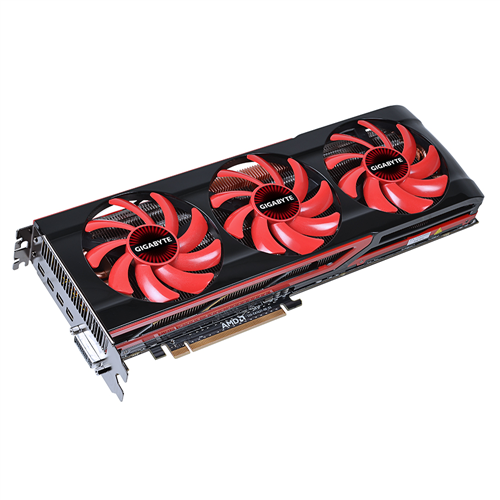

Tube: 13.4" Harga : Rp 17.300.000 7. Gigabyte HD 7990 6Gb 768Bit DDR5 GV-R799D5-6GD-B Ati Radeon PCI Exp. Chipset Radeon HD 7990 Core Clock Base 950 MHz Boost 1000MHz Memory Clock 6000 MHz Process Technology 28 nm Memory Size 6GB Memory Bus 768 bit Card Bus PCI-E 3.0 Memory Type GDDR5 DirectX 11.1 OpenGL 4.2 PCB Form ATX Digital max resolution 2560 x 1600 Analog max resolution 2048 x 1536 Multi-view 5 Card size H40mm x L320 mm x W126 mm Power requirement 750W (two 150W 8-pin PCI Express® connector recommended) Harga : Rp 14.313.000 8. Asus GTX TITAN Black 6Gb 384Bit DDR5 NVidia PCI Exp.

Graphics Engine

NVIDIA GeForce GTX TITAN

Bus Standard

PCI Express 3.0

Video Memory

GDDR5 6GB

Engine Clock

GPU Boost Clock : 876 MHz

GPU Base Clock : 837 MHz

CUDA Core

2688

Memory Clock

6000 MHz ( 1500 MHz DDR5 )

Memory Interface

384-bit

Interface

DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)

HDMI Output : Yes x 1

Display Port : Yes x 1 (Regular DP)

HDCP Support : Yes

Power Consumption

up to 300Wadditional 6+8 pin PCIe power required

Accessories

1 x Power cable

1 x DVI to D-Sub adaptor

Software

ASUS GPU Tweak & Driver

ASUS Features

Fan Sink

Dimensions

10.5 " x 4.376 " x 1.5 " Inch

26.67 x 11.11 x3.81 Centimeter

Note

● Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/

● Specifications are subject to change without notice.

● PCB color and bundled software versions are change without notice.

● Brand and product names mentioned are trademarks of their respective company.

Harga : Rp 13.837.000

9. Gigabyte GTX TITAN 6144Mb DDR5 GV-NTITANOC-6GD-B NVidia PCI Exp.

Chipset	GeForce GTX TITAN
Memory Clock	6008 MHz
Process Technology	28 nm
Memory Size	6144 MB
Core Clock	Base / Boost clock：928 / 980 MHz
Memory Bus	384 bit
Card Bus	PCI-E 3.0
Memory Type	GDDR5
DirectX	11.1
OpenGL	4.3
PCB Form	ATX
Digital max resolution	4096 X 2160
Analog max resolution	2048 x 1536
Multi-view	4
I/O	Dual-link DVI-I*1
DVI-D*1
DisplayPort*1
HDMI*1
Power requirement	600W (with one 6-pin and one 8-pin external power connectors)

Harga : Rp 13.537.000

10. Manli GTX 690 4Gb 512Bit DDR3 NVidia PCI Exp.

GTX 690 GPU Engine Specs:

3072CUDA Cores

915Base Clock (MHz)

1019Boost Clock (MHz)

234Texture Fill Rate (billion/sec)

GTX 690 Memory Specs:

6.0Memory Speed (Gbps)

4096 MB (2048 MB per GPU) GDDR5Standard Memory Config

512-bit (256-bit per GPU)Memory Interface Width

384Memory Bandwidth (GB/sec)

GTX 690 Support:

GPU Boost, PhysX, TXAA, NVIDIA G-SYNC-readyImportant Technologies

3D Vision, CUDA, DirectX 11, Adaptive VSync, FXAA, 3D Vision Surround, SLIOther Supported Technologies1

4.2OpenGL

11Microsoft DirectX 11.2 API

PCI Express 3.0Bus Support

YesCertified for Windows 7

QuadSLI Options2

Display Support:

4 displaysMulti Monitor

4096x2160Maximum Digital Resolution4

2048x1536Maximum VGA Resolution

YesHDCP

Yes (via dongle)HDMI3

Two Dual Link DVI-I. One Dual link DVI-D. One Mini-Displayport 1.2Standard Display Connectors

InternalAudio Input for HDMI

GTX 690 Graphics Card Dimensions:

11.0 inches Length

4.376 inches Height

Dual-slotWidth

Thermal and Power Specs:

98 CMaximum GPU Tempurature (in C)

300 WMaximum Graphics Card Power (W)

650 WMinimum System Power Requirement (W)

Two 8-pinSupplementary Power Connectors

3D Vision Ready:

Yes3D Blu-Ray

Yes3D Gaming

Yes3D Vision Live (Photos and Videos) Harga : Rp 12.238.000 Sumber : Mangga 2 Mall Jakarta, Nvidia, ATi Radeon.
